HL310NK

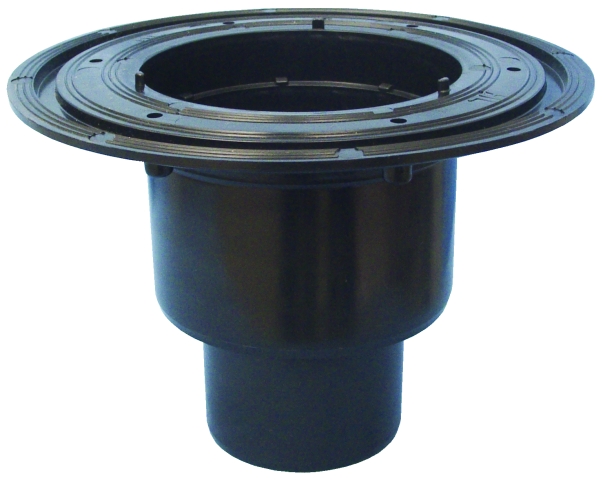

floor drain body DN50/75/110 vertical

HL310NK

floor drain body DN50/75/110 vertical with flange. Comes with lot cover.

attachment

HL181Product overview / Balcony and terrace / attachmentsFlat leaf catcher for balcony or terrasse drains of series HL80, HL90 and HL310NK, HL510NK HL3000.1Product overview / Floor drains / attachmentsgrating d 110mm/stainless steel frame 121x121mm/115x115mm with trap seal. System "KLICK-KLACK". Comes with supporting frame/cover. HL2000KKProduct overview / Floor drains / attachmentstrap seal PRIMUS HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL3000PrProduct overview / Floor drains / attachmentsgrating d 110mm/stainless steel frame 121x121mm/115x115mm with trap seal PRIMUS. System "KLICK-KLACK". Comes with supporting frame/cover. HL0510.7EKKProduct overview / Floor drainstrap seal cartridge HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL37N.1Product overview / Floor drains / attachmentsgrating d 110mm/123x123mm/115x115mm with trap seal. Comes with lot cover HL090.4EProduct overview / Balcony and terraceflap cartridge HL2000Product overview / Floor drains / attachmentstrap seal PRIMUS HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL37NP.1Product overview / Floor drains / attachmentsgrating d 110mm/PVC-collar 185x185mm/115x115mm with trap seal HL090.4EProduct overview / Balcony and terraceflap cartridge HL2000Product overview / Floor drains / attachmentstrap seal PRIMUS HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL37NPPrProduct overview / Floor drains / attachmentsgrating d 110mm/PVC-collar 185x185mm/115x115mm and trap seal Primus HL0510.7EProduct overview / Floor drainstrap seal cartridge HL090.4EProduct overview / Balcony and terraceflap cartridge HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL37NPrProduct overview / Floor drains / attachmentsgrating d 110mm/123x123mm/115x115mm with trap seal PRIMUS. Comes with lot cover HL0510.7EProduct overview / Floor drainstrap seal cartridge HL090.4EProduct overview / Balcony and terraceflap cartridge HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL38N.1Product overview / Floor drains / attachmentsgrating round d 110mm/stainless steel frame d 131mm/d 112mm with trap seal HL090.4EProduct overview / Balcony and terraceflap cartridge HL2000Product overview / Floor drains / attachmentstrap seal PRIMUS HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL38NPrProduct overview / Floor drains / attachmentsgrating round d 110mm/stainless steel frame d 131mm/d 112mm with trap seal PRIMUS HL0510.7EProduct overview / Floor drainstrap seal cartridge HL090.4EProduct overview / Balcony and terraceflap cartridge HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL39.1Product overview / Floor drains / attachmentsGrating d 110mm/147x147mm/140x140mm with trap seal HL0300.1SEProduct overview / Floor drainsstainless steel grate (316) 140x140mm HL0300.3EProduct overview / Floor drainspolished solid brass grate 140x140mm HL0300.4EProduct overview / Floor drainsstainless steel grate white 140x140mm HL090.4EProduct overview / Balcony and terraceflap cartridge HL2000Product overview / Floor drains / attachmentstrap seal PRIMUS HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL39PrProduct overview / Floor drains / attachmentsgrating d 110mm/147x147mm/140x140mm with trap seal PRIMUS HL0300.1SEProduct overview / Floor drainsstainless steel grate (316) 140x140mm HL0300.3EProduct overview / Floor drainspolished solid brass grate 140x140mm HL0300.4EProduct overview / Floor drainsstainless steel grate white 140x140mm HL0510.7EProduct overview / Floor drainstrap seal cartridge HL090.4EProduct overview / Balcony and terraceflap cartridge HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL39PrGProduct overview / Floor drains / attachmentsgrating d 110mm/cast iron frame 150x150mm/137x137mm cast iron with trap seal PRIMUS HL0510.7EProduct overview / Floor drainstrap seal cartridge HL090.4EProduct overview / Balcony and terraceflap cartridge HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL619Product overview / Balcony and terrace / attachmentsfixing brackets HL82Product overview / Balcony and terrace / attachmentsheating kit 18W/230V HL840Product overview / Attachmentsfire collar R90 for HL310N series HL845Product overview / Attachmentsformwork-core with center-ring for HL840

extensions

HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring HL85NProduct overview / Sealing kits / Extensions / extensionsextension with flange incl. O-ring HL85NCProduct overview / Sealing kits / Extensions / extensionsextension d 110mm CeraDrain with polymer concrete collar incl. O-ring HL85NHProduct overview / Sealing kits / Extensions / extensionsextension incl. O-ring with bitumen membrane

Waterproofing Kits

HL83Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with EPDM collar 400x400mm HL83.0Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit HL83.HProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with bitumen membrane d 400mm HL83.MProduct overview / Sealing kits / Extensions / waterproofing kitsSealing kit with laminated fleece HL83.PProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with flange PVC d 287mm

used with

HL310NProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical 123x123mm/115x115mm HL310N.2Product overview / Balcony and terrace / vertical / flangebalcony and terrace drain DN50/75/110 vertical with frost-proof flap seal, 123x123mm/115x115mm HL310N-3000Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical, 121x121mm KLICK-KLACK/115x115mm HL310N-3120Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical, 121x121mm KLICK-KLACK/115x115mm "Quadra" HL310N-3121Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical, 121x121mm KLICK-KLACK/115x115mm "Seine" HL310N-3123Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical, 121x121mm KLICK-KLACK/115x115mm "Orinoco" HL310N-3124Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical, 121x121mm KLICK-KLACK/115x115mm "Nil" HL310N-3125Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical, 121x121mm KLICK-KLACK/115x115mm "Yukon" HL310NGProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical 150x150mm/137x137mm cast iron HL310NPrProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS, 123x123mm/115x115mm HL310NPr-3000Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS, 121x121mm KLICK-KLACK/115x115mm HL310NPr-3120Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS, 121x121mm KLICK-KLACK/115x115mm "Quadra" HL310NPr-3121Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS, 121x121mm KLICK-KLACK/115x115mm "Seine" HL310NPr-3123Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS, 121x121mm KLICK-KLACK/115x115mm "Orinoco" HL310NPr-3124Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS, 121x121mm KLICK-KLACK/115x115mm "Nil" HL310NPr-3125Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS, 121x121mm KLICK-KLACK/115x115mm "Yukon" HL310NPrGProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS,150x150mm/137x137mm cast iron HL310NPrRProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS, round d 133mm/d 112mm HL310NRProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical round d 133mm/d 112mm

technical data

material

PE

dimension

DN50/75/110

capacity

weight

0,233

[kg]

EAN	9003076008674

installation height

144 mm

grate frame

grate

load class

inlet

standards

carton

unit

1

[pcs.]

weight

0,42

[kg]

EAN/pack.

9003076008674

height/width/depth

155/225/295

[mm]

volume

0,010288125

[m³]

single use pallet

unit	143 [pcs.]

weight

70

[kg]

EAN/pack.

height/width/depth

1900/800/1200

[mm]

volume

1,824000000

[m³]

downloads

Foto Print

max.

Foto Web

640x480/300dpi

Foto Parts List

150x150/72dpi

Techn. drawing

pdf

CAD

HL310NK_2_a.dxf

dxf

example of use

pdf
