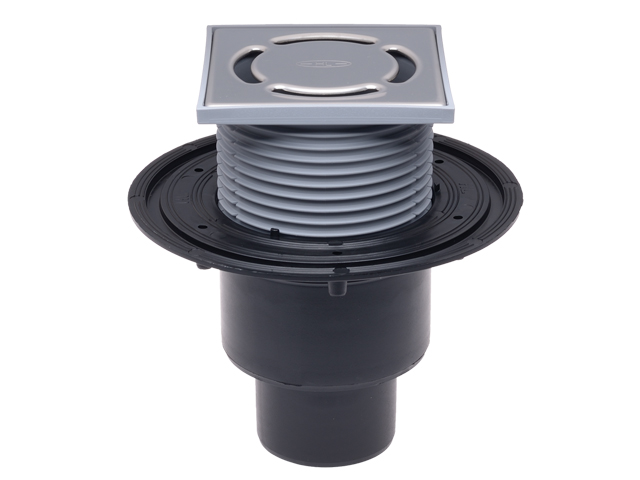

floor drain DN50/75/110 vertical with trap seal PRIMUS, 123x123mm/115x115mm
floor drain DN50/75/110 vertical with flange, trap seal PRIMUS, cut-to-size grate frame 12 - 70 mm / 123 x 123 mm and stainless steel grate 115 x 115 mm. Comes with lot cover.

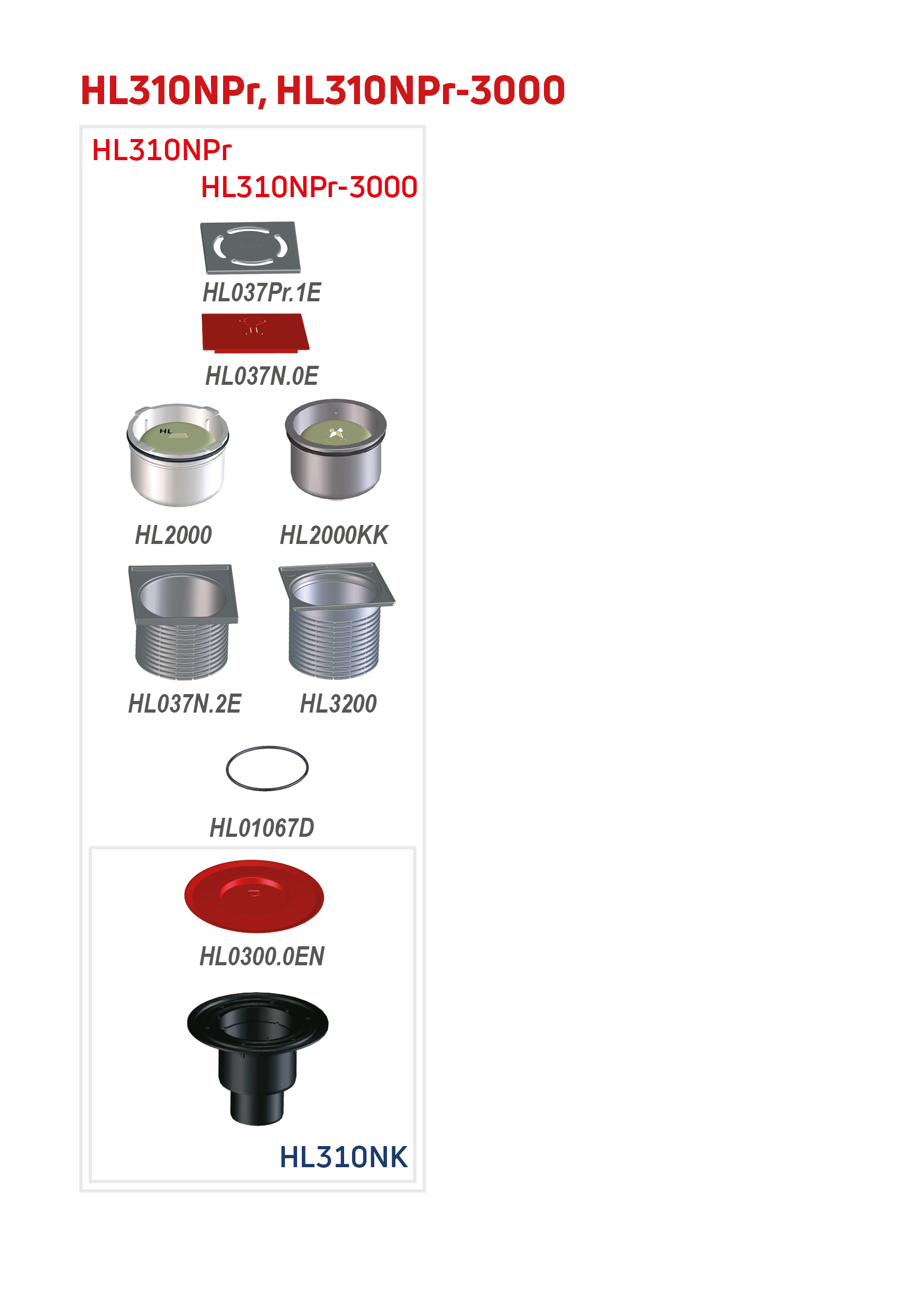

spare parts
HL037Pr.1EProduct overview / Floor drainsStainless steel grate 115x115mm
HL310NKProduct overview / Floor drains / vertical / flangefloor drain body DN50/75/110 vertical
HL37NPrProduct overview / Floor drains / attachmentsgrating d 110mm/123x123mm/115x115mm with trap seal PRIMUS. Comes with lot cover
HL037N.2EProduct overview / Floor drainsgrate frame d 110mm/90mm/123x123mm incl. O-ring
HL01067DProduct overview / Floor drainsO-ring 92x4mm
HL037N.0EProduct overview / Floor drainssupporting frame/cover 123x123mm
HL037Pr.1EProduct overview / Floor drainsStainless steel grate 115x115mm
HL2000Product overview / Floor drains / attachmentstrap seal PRIMUS
HL01067DProduct overview / Floor drainsO-ring 92x4mm
attachment
HL0510.7EProduct overview / Floor drainstrap seal cartridge
HL3000Product overview / Floor drains / attachmentsgrating d 110mm/stainless steel frame 121x121mm/115x115mm. System "KLICK-KLACK". Comes with supporting frame/cover.
HL0510.7EKKProduct overview / Floor drainstrap seal cartridge
HL2000KKProduct overview / Floor drains / attachmentstrap seal PRIMUS
HL619Product overview / Balcony and terrace / attachmentsfixing brackets
HL3110Product overview / Floor drains / attachmentsstainless steel grate (316) 115x115mm
HL3127Product overview / Floor drains / attachmentsStainless steel grate (V4A) 115x115mm 'Primus Design'
HL3210Product overview / Floor drains / attachmentsExtension d 110/100mm, stainless steel frame (V4A) 121x121mm, incl. O-Ring. System "Klick-Klack".
HL619Product overview / Balcony and terrace / attachmentsfixing brackets
HL840Product overview / Attachmentsfire collar R90 for HL310N series
HL845Product overview / Attachmentsformwork-core with center-ring for HL840
Alternatives
HL310NProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical 123x123mm/115x115mm
HL310NPrGProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS,150x150mm/137x137mm cast iron
HL310NPrRProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical with trap seal PRIMUS, round d 133mm/d 112mm
extensions
HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring
HL85NProduct overview / Sealing kits / Extensions / extensionsextension with flange incl. O-ring
HL85NCProduct overview / Sealing kits / Extensions / extensionsextension d 110mm CeraDrain with polymer concrete collar incl. O-ring
HL85NHProduct overview / Sealing kits / Extensions / extensionsextension incl. O-ring with bitumen membrane
Waterproofing Kits
HL83Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with EPDM collar 400x400mm
HL83.0Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit
HL83.HProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with bitumen membrane d 400mm
HL83.MProduct overview / Sealing kits / Extensions / waterproofing kitsSealing kit with laminated fleece
HL83.PProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with flange PVC d 287mm
technical data
| material | PP,PE,Edelstahl |
| dimension | DN50/75/110 |
| capacity | 0,5 l/s |
| weight | 0,75 [kg] |
| EAN | 9003076004676 |
| installation height | 158mm |
| grate frame | 12-70mm/123x123mm |
| grate | Edelstahl 115x115mm |
| load class | K3 - 300kg |
| inlet |
| standards | EN1253 |
carton
| unit | 1 [pcs.] |
| weight | 0,942 [kg] |
| EAN/pack. | 9003076004676 |
| height/width/depth | 155/225/295 [mm] |
| volume | 0,010288125 [m3] |
single use pallet
| unit | 143 [pcs.] |
| weight | 145 [kg] |
| EAN/pack. |
| height/width/depth | 1950/800/1200 [mm] |
| volume | 1,872000000 [m3] |
