floor drain DN50/75/110 vertical with trap seal PRIMUS, round d 133mm/d 112mm
floor drain DN50/75/110 vertical with flange, trap seal PRIMUS, cut-to-size plastic extension 20 - 75 mm with stainless steel frame round d 133 mm and stainless steel plate d 112 mm. Comes with lot cover.

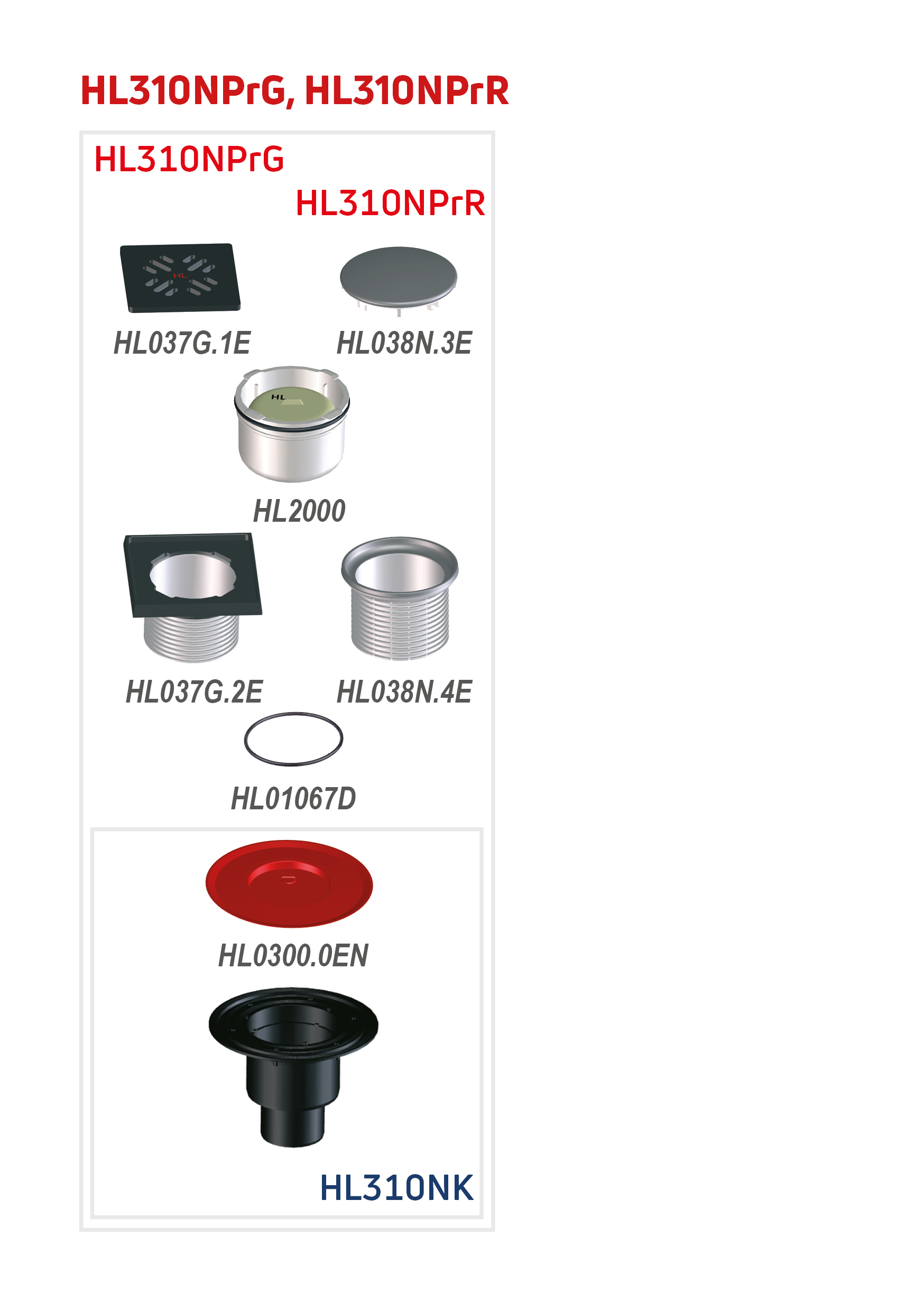

spare parts
HL310NKProduct overview / Floor drains / vertical / flangefloor drain body DN50/75/110 vertical
HL38NPrProduct overview / Floor drains / attachmentsgrating round d 110mm/stainless steel frame d 131mm/d 112mm with trap seal PRIMUS
HL038N.3EProduct overview / Floor drainsstainless steel plate round d 112mm
HL038N.4EProduct overview / Floor drainsgrate frame round d 110mm/93mm/stainless steel frame d 133mm incl. O-ring
HL01067DProduct overview / Floor drainsO-ring 92x4mm
HL2000Product overview / Floor drains / attachmentstrap seal PRIMUS
HL01067DProduct overview / Floor drainsO-ring 92x4mm
attachment
HL0510.7EProduct overview / Floor drainstrap seal cartridge
HL619Product overview / Balcony and terrace / attachmentsfixing brackets
HL840Product overview / Attachmentsfire collar R90 for HL310N series
HL845Product overview / Attachmentsformwork-core with center-ring for HL840
Alternatives
extensions
HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring
HL85NProduct overview / Sealing kits / Extensions / extensionsextension with flange incl. O-ring
HL85NCProduct overview / Sealing kits / Extensions / extensionsextension d 110mm CeraDrain with polymer concrete collar incl. O-ring
HL85NHProduct overview / Sealing kits / Extensions / extensionsextension incl. O-ring with bitumen membrane
Waterproofing Kits
HL83Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with EPDM collar 400x400mm
HL83.0Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit
HL83.HProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with bitumen membrane d 400mm
HL83.MProduct overview / Sealing kits / Extensions / waterproofing kitsSealing kit with laminated fleece
HL83.PProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with flange PVC d 287mm
technical data
| material | PP,PE,Edelstahl |
| dimension | DN50/75/110 |
| capacity | 0,5 l/s |
| weight | 0,657 [kg] |
| EAN | 9003076006052 |
| installation height | 158 mm |
| grate frame | 20-78 mm/d 133 mm |
| grate | Edelstahl rund d 112 mm |
| load class | K3 - 300 kg |
| inlet |
| standards | EN 1253 |
carton
| unit | 1 [pcs.] |
| weight | 0,846 [kg] |
| EAN/pack. | 9003076006052 |
| height/width/depth | 155/225/295 [mm] |
| volume | 0,010288125 [m3] |
